Android 13 1DIN Multimedia Monitor with Plug & Play Kit for FIAT Ducato 2021>

T1003DAB.KITDUC8

Name: Android 13 1DIN Multimedia Monitor with Plug & Play Kit for FIAT Ducato 2021>
Brand: Macrom
SKU: T1003DAB.KITDUC8
Price: 622.50 EUR
Availability: InStock

Android 13 1DIN Multimedia Monitor with Plug & Play Kit for FIAT Ducato 2021>

Android 13 1DIN multimedia system with 10" QLED display, DAB+ radio, Bluetooth 5.0 and Plug & Play kit for FIAT Ducato from 2021 onwards.

622.50€

Available now

Arrives in 24-48 hours

Pay in 3 installments of 207.50€ without interest APR 0%.

Certified products with license

Fast and secure shipping

After-sales customer service

Secure and easy payments

Product description

Turn every journey into a unique experience with the T1003DAB system, featuring a dedicated kit for FIAT Ducato from 2021 onwards.

The kit includes:

Macrom T1003DAB Monitor

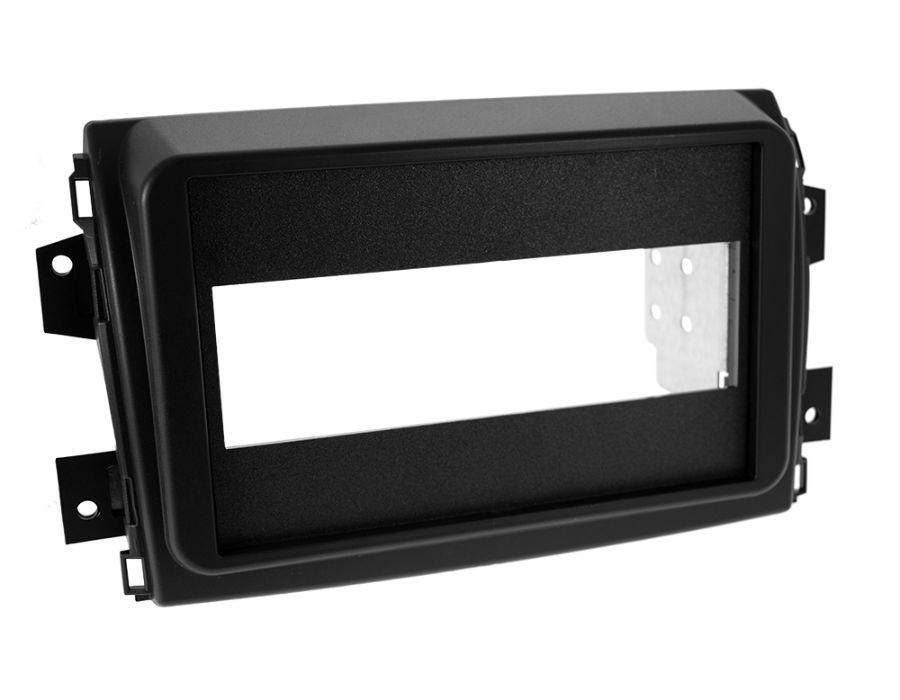

Fascia panel
Metal mounting brackets

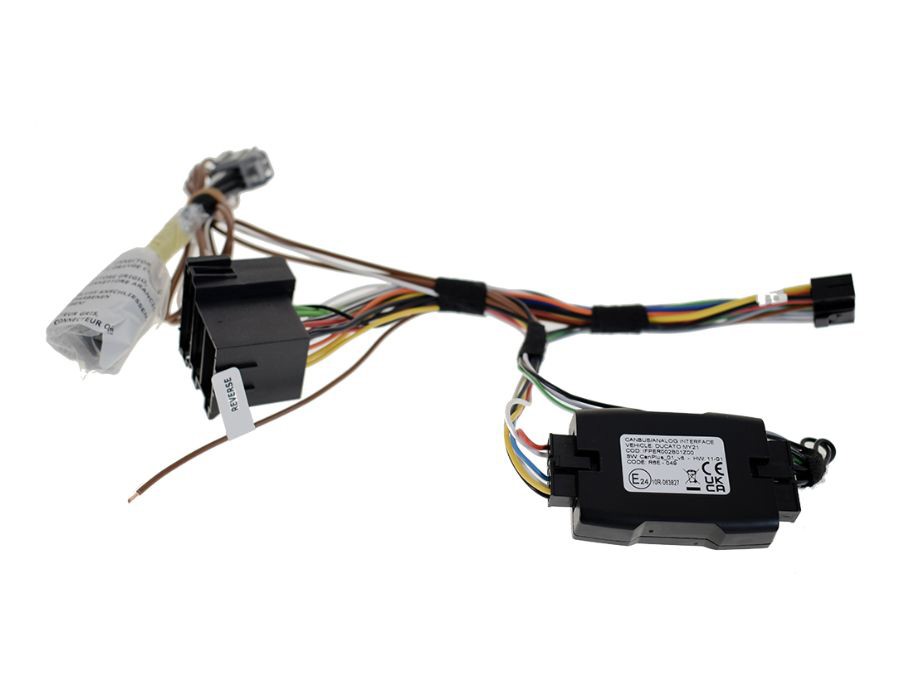

ISO wiring harnesses
Power supply with steering wheel control retention, if present
FM and DAB antenna

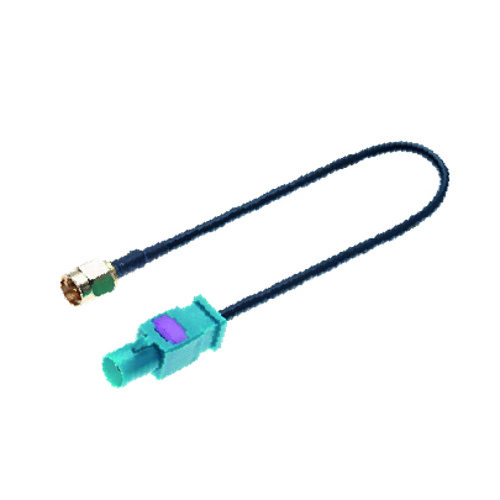

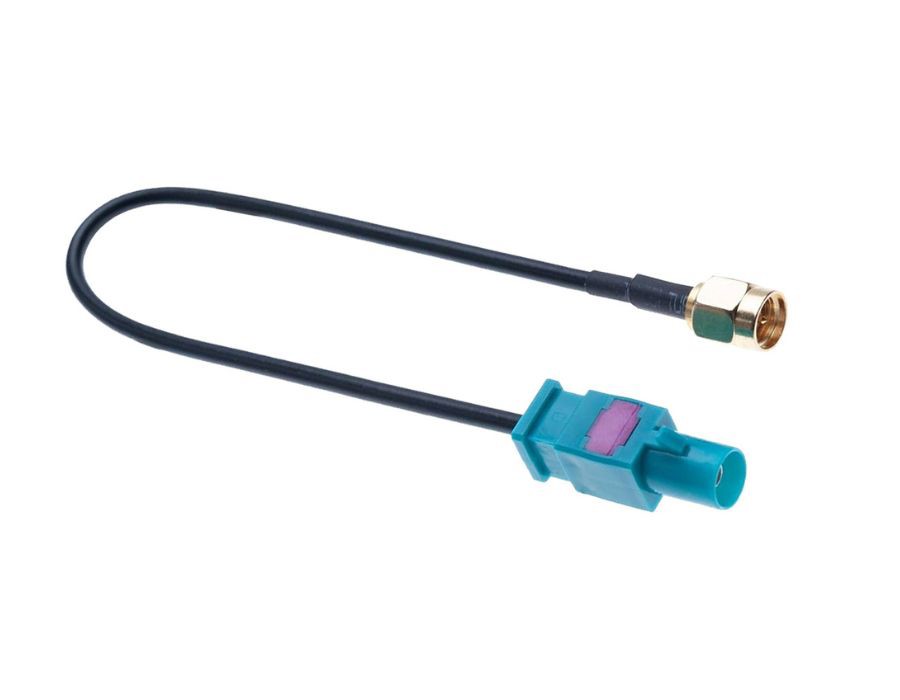

Fakra to SMA adapter.

The Macrom T1003DAB monitor is equipped with a powerful 2.5 GHz ARM Octa-Core processor with Android 13 operating system and 4/64GB memory, ensuring a smooth and responsive interface, compatible with thousands of apps available on Google Play.

It supports wireless CarPlay and Android Auto via the Apple & Android Link application, allowing you to connect your smartphone directly to the monitor without cables.
Easily access navigation maps, music, calls and messages from the vehicle’s screen, improving driving safety thanks to an intuitive interface that helps keep your eyes on the road.

It features DAB Service Following, which allows you to keep listening to the same radio station even when moving between different coverage areas, automatically switching between DAB, DAB+ and FM. This provides a seamless listening experience, eliminating the need to manually retune the station when moving between coverage areas.

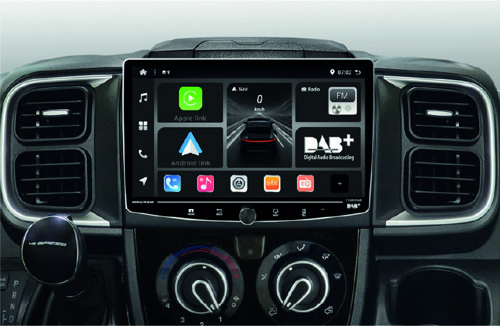

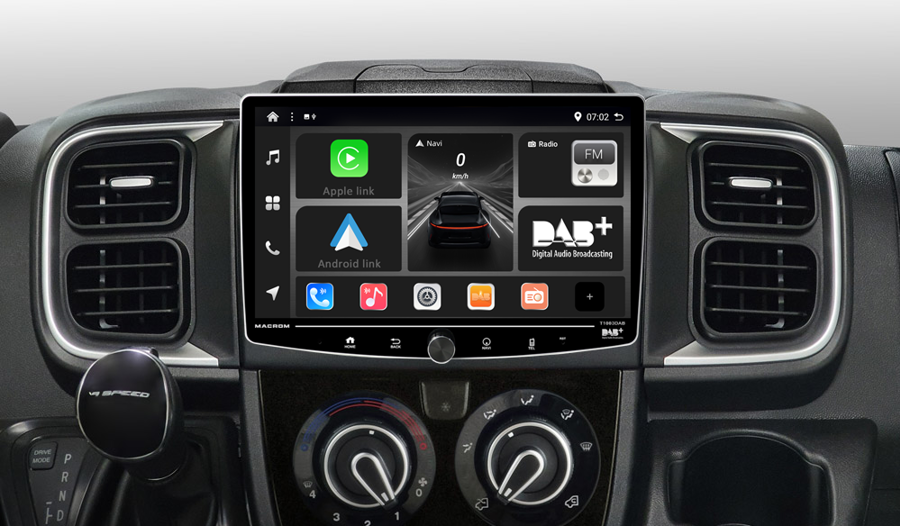

The 10.1” QLED capacitive touchscreen display can be adjusted in height, tilt and rotation to ensure the best visibility and comfort while driving.

The universal design with a 1 DIN chassis makes the monitor compatible with most vehicles on the market, offering a simple installation without compromises.

Documents, Manuals and Certifications

Download "Installation manual T1003 eng DUC 8-9.pdf"

Download "T1003DAB.KITDUC8_ENG.pdf"

Download "T1003DAB USER MANUAL_Ver3.0.3112025.pdf"

Features

Installation Frame	1DIN
Operating System	Android 13
Processor	8-core
CPU Speed	-
RAM Memory	4GB
Flash Memory	64GB
Smartphone Connectivity	Wireless Apple-Link & Android-Link
Capacitive Touchscreen Display	QLED 10’’
Display Resolution	1920x1080 Full HD
Backlight	QLED
Analogue Radio Tuner	AM/FM RDS
Digital Radio Tuner	DAB+ with FM service
DAB Antenna	Includes FM/DAB adapter
Bluetooth Hands-Free & Audio Streaming	Sì
Audio Equaliser	via Android
GPS Navigation	-
Camera Inputs	2
USB Inputs	2
SD Card Input	-
Audio Input	Sì
Video Input	Sì
Preamp Outputs	3
Supported Audio Formats	MP3, WMA, WAV, FLAC
Supported Video Formats	MP4, AVI, MKV

Compare products Scroll to compare products	T1003DAB.KITDUC8 Add to cart	T6562BT Add to cart	M-AN700DAB Add to cart	M-AN900 Add to cart
Price	622.50€	259.00€	249.00€	299.00€
Installation Frame	1DIN	-	-	-
Operating System	Android 13	Android 10	Android 10	Android 10
Processor	8-core	Quad Core ARM A7	Quad Core ARM A7	Quad Core ARM A7
CPU Speed	-	4*1.2 GHz	4*1.2 GHz	4*1.2 GHz
RAM Memory	4GB	2GB DDR3	2GB DDR3	2GB DDR3
Flash Memory	64GB	32GB	16GB	16GB
Smartphone Connectivity	Wireless Apple-Link & Android-Link	Mirror function via EasyConnection app	Mirror function via EasyConnection app	Mirror function via EasyConnection app
Capacitive Touchscreen Display	QLED 10’’	7” inches	6.75 inches	9 inches
Display Resolution	1920x1080 Full HD	1024*600 pixels	1024*600 pixels	1920*1080 pixels
Backlight	QLED	-	RGB – 7-colour selectable GUI	RGB – 7-colour selectable GUI
Analogue Radio Tuner	AM/FM RDS	FM/AM with RDS	FM/AM with RDS	FM/AM with RDS
Digital Radio Tuner	DAB+ with FM service	DAB+ optional	DAB/DAB+ integrated	DAB+ optional
DAB Antenna	Includes FM/DAB adapter	-	Included	-
Bluetooth Hands-Free & Audio Streaming	Sì	-	Sì	Sì
Audio Equaliser	via Android	-	-	-
GPS Navigation	-		Built-in	Built-in
Camera Inputs	2	1	2	2
USB Inputs	2	2	1	3
SD Card Input	-	Sì	Sì	Sì
Audio Input	Sì	Sì	Sì	Sì
Video Input	Sì	Sì	Sì	Sì
Preamp Outputs	3	1	2	5
Supported Audio Formats	MP3, WMA, WAV, FLAC	MP3, WMA, AAC, RM, FLAC	MP3, WMA, AAC, RM, FLAC etc.	MP3, WMA, AAC, RM, FLAC etc.
Supported Video Formats	MP4, AVI, MKV	MPEG-1/2/4, H264, H263, VC1, RV, RMVB, Divx	MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson Spark, Spark, VP8, AVS Stream	MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson Spark, Spark, VP8, AVS Stream
