7” Android Multimedia Monitor – Motorised 1 DIN with DAB Receiver
T6563DAB
7” motorised Android 1 DIN monitor with DAB receiver – designed for advanced infotainment and high-quality digital radio.
EAN Code: 8053839214881
7” motorised Android 1 DIN monitor with DAB receiver – designed for advanced infotainment and high-quality digital radio.
EAN Code: 8053839214881

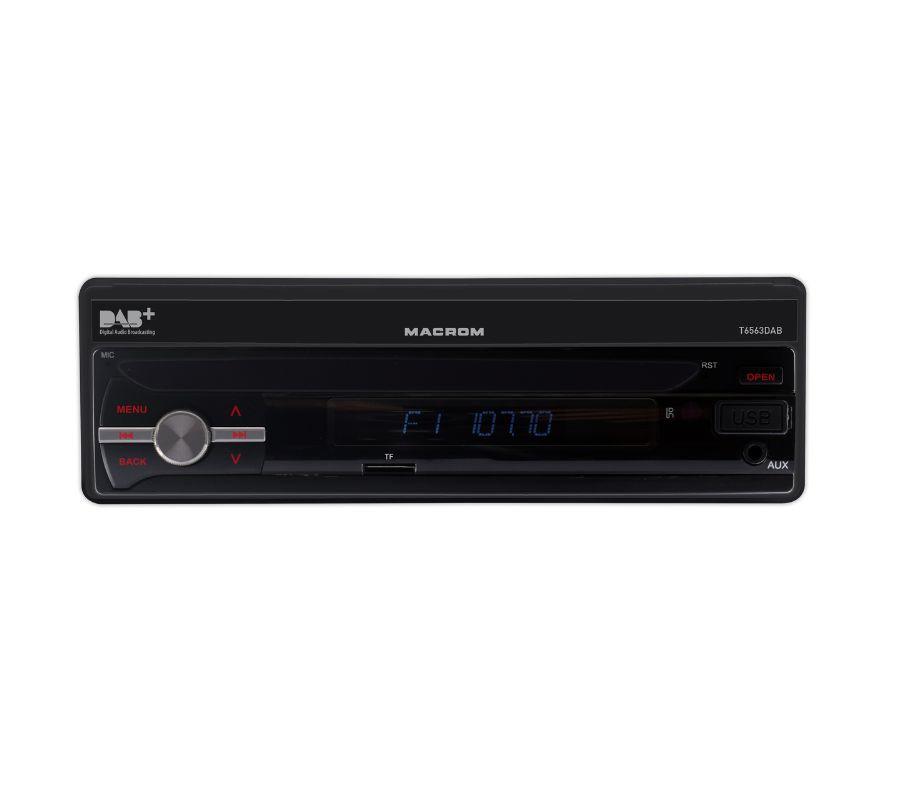

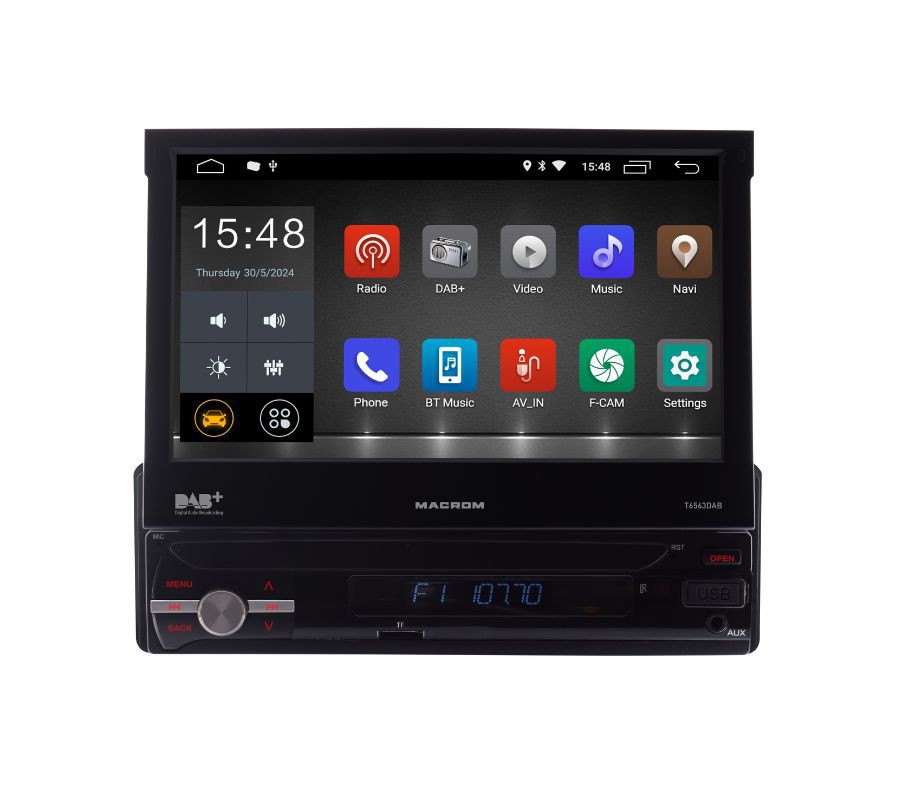

The Macrom T6563DAB multimedia monitor features a 7” motorised display in a compact 1 DIN chassis, complete with an integrated DAB receiver for superior digital radio sound quality.
Running on Google Android, it delivers a simple, high-performance interface with access to a wide range of multimedia apps and connected services – enhancing your onboard entertainment experience.
Its 1 DIN format, paired with an ultra-slim and angle-adjustable screen, ensures easy installation and seamless integration into any vehicle, offering both style and functionality without compromise.
Operating System |
Android 10 |
Processor |
Android 10 |
CPU Speed |
4*1.2 GHz |
RAM Memory |
2GB DDR3 |
Flash Memory |
32GB |
Smartphone Connectivity |
Mirror function via EasyConnection app |
Capacitive Touchscreen Display |
7 inches |
Display Resolution |
1024*600 pixels |
Backlight |
- |
Analogue Radio Tuner |
FM/AM with RDS |
Digital Radio Tuner |
DAB+ optional |
DAB Antenna |
Included |
Bluetooth Hands-Free & Audio Streaming |
Sì |
GPS Navigation |
Built-in |
Camera Inputs |
2 |
USB Inputs |
2 |
SD Card Input |
Sì |
Audio Input |
Sì |
Video Input |
Sì |
Preamp Outputs |
3 |
Supported Audio Formats |
MP3, WMA, AAC, RM, FLAC |
Supported Video Formats |
MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX |
Android 10
App Store
Easy Connection
Flash 32GB
Google Maps
Google Play Music
Google Play Store
GPS
Microphone
RAM 2GB
Spotify
Wi-Fi Connection
AV
BT
CPU OCTA-CORE
DAB
Easy connect 2
EQ
GPS-2
High power
MIC-BT
Micro SD
Navi
Navi On-Line
RDS
Rear Camera 2
SWC
Touch
USB
WI-FI
For those who prefer traditional off-line cartography navigation, the device can be equipped with the Europe navigation map (43 countries) with software based on the iGo primo nextgen system dedicated to NV.ANFET Motorhomes and Heavy Duty Vehicles and NV.ANFEU Cars. Please note the off-line navigation software must be purchased separately
Discover the maps
Compare productsScroll to compare products |
T6563DAB
Add to cart
|
T6562BT
Add to cart
|
M-AN700DAB
Add to cart
|
---|---|---|---|
Price | 369.00€ | 319.00€ | 249.00€ |
Operating System | Android 10 | Android 10 | Android 10 |
Processor | Android 10 | Quad Core ARM A7 | Quad Core ARM A7 |
CPU Speed | 4*1.2 GHz | 4*1.2 GHz | 4*1.2 GHz |
RAM Memory | 2GB DDR3 | 2GB DDR3 | 2GB DDR3 |
Flash Memory | 32GB | 32GB | 16GB |
Smartphone Connectivity | Mirror function via EasyConnection app | Mirror function via EasyConnection app | Mirror function via EasyConnection app |
Capacitive Touchscreen Display | 7 inches | 7” inches | 6.75 inches |
Display Resolution | 1024*600 pixels | 1024*600 pixels | 1024*600 pixels |
Backlight | - | - | RGB – 7-colour selectable GUI |
Analogue Radio Tuner | FM/AM with RDS | FM/AM with RDS | FM/AM with RDS |
Digital Radio Tuner | DAB+ optional | DAB+ optional | DAB/DAB+ integrated |
DAB Antenna | Included | - | Included |
Bluetooth Hands-Free & Audio Streaming | Sì | - | Sì |
GPS Navigation | Built-in | Built-in | |
Camera Inputs | 2 | 1 | 2 |
USB Inputs | 2 | 2 | 1 |
SD Card Input | Sì | Sì | Sì |
Audio Input | Sì | Sì | Sì |
Video Input | Sì | Sì | Sì |
Preamp Outputs | 3 | 1 | 2 |
Supported Audio Formats | MP3, WMA, AAC, RM, FLAC | MP3, WMA, AAC, RM, FLAC | MP3, WMA, AAC, RM, FLAC etc. |
Supported Video Formats | MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX | MPEG-1/2/4, H264, H263, VC1, RV, RMVB, Divx | MPEG-1/2/4, H264, H263, VC1, RV, RMVB, DivX, Sorenson Spark, Spark, VP8, AVS Stream |
